Wedge Anchor / Through Bolt
Wedge Anchor / Through Bolt for concrete fixing projects in Indonesia. Share approved application details, anchor diameter, length, material, finish and quantity; availability and product-specific performance data are confirmed during quotation.
Wedge Anchor / Through Bolt Supplier

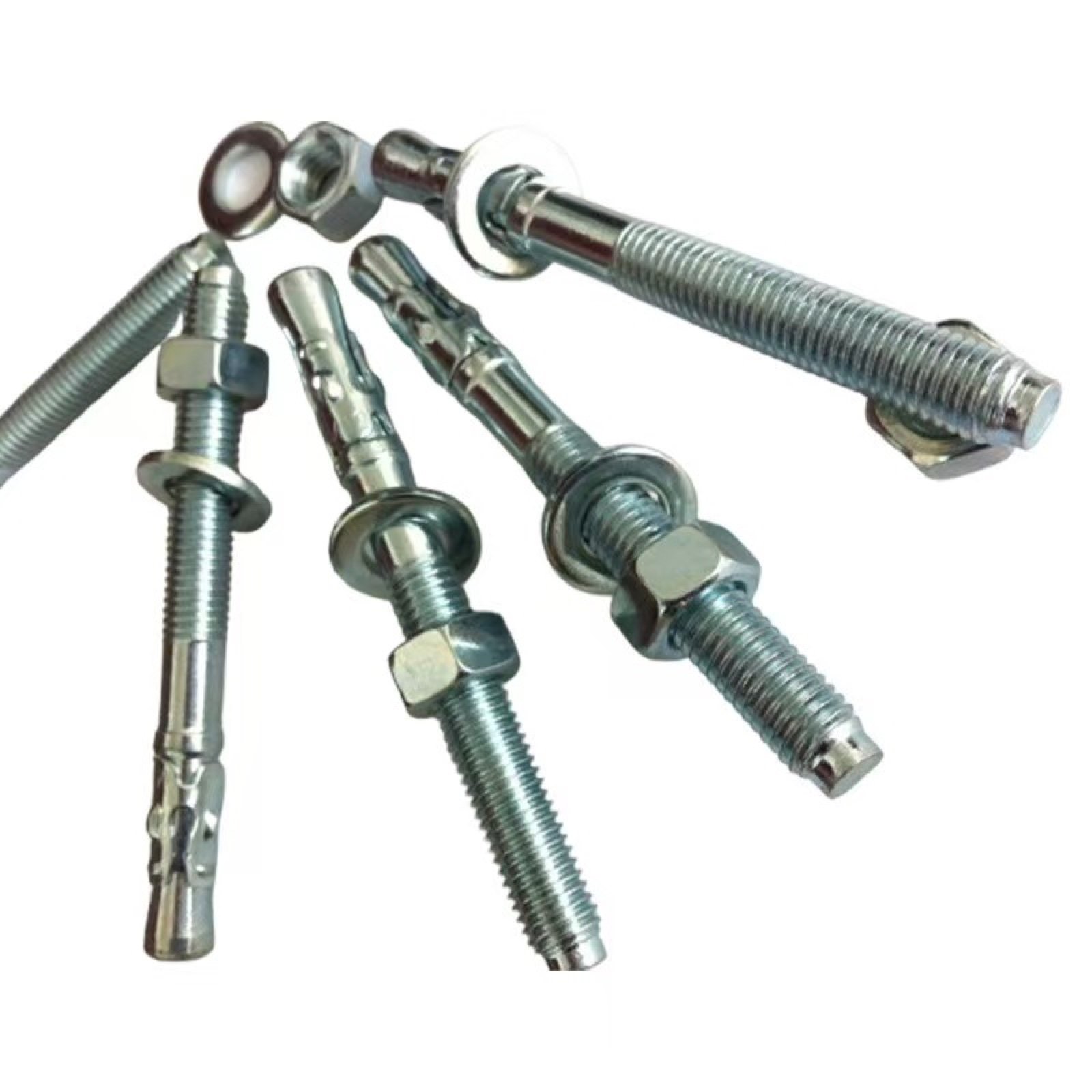

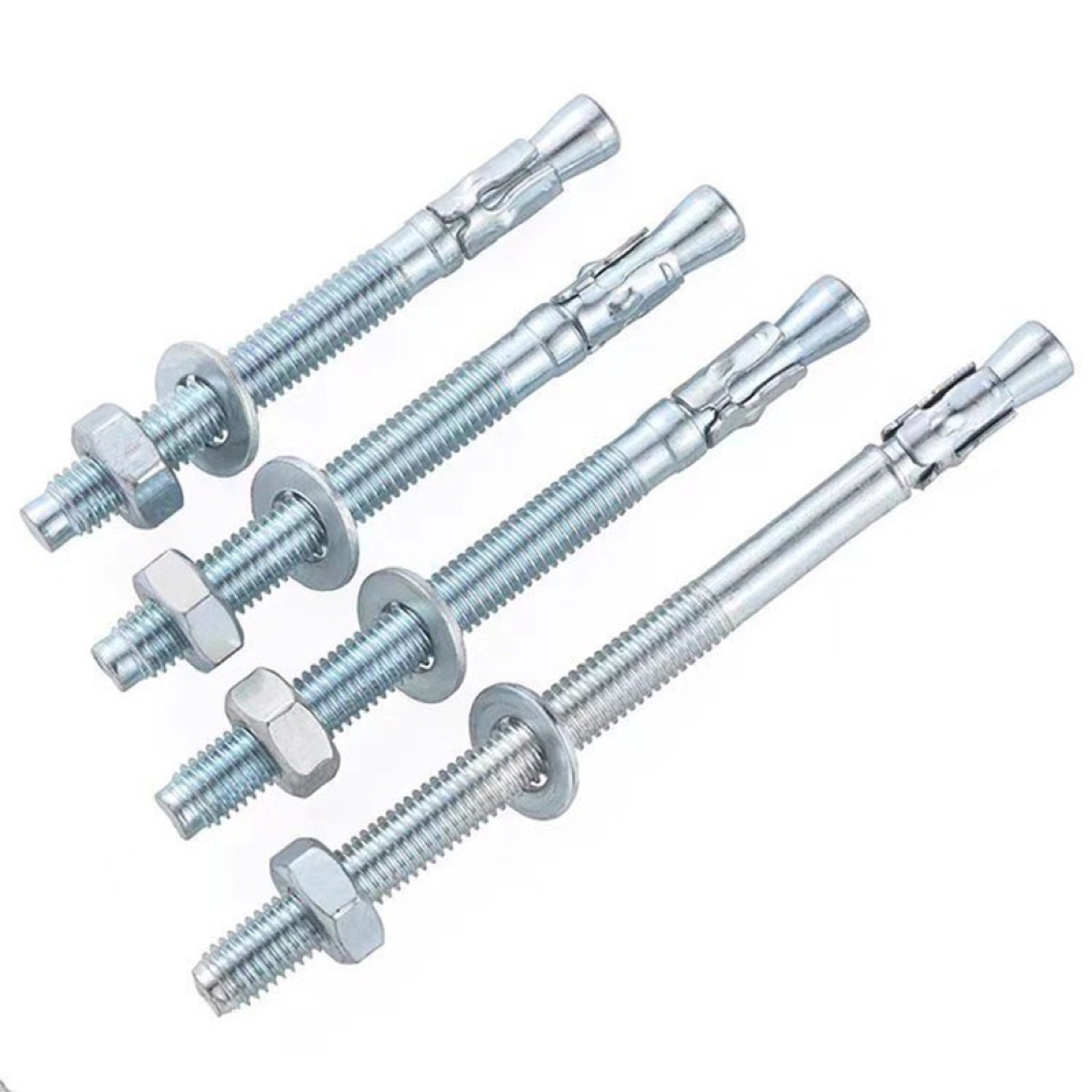

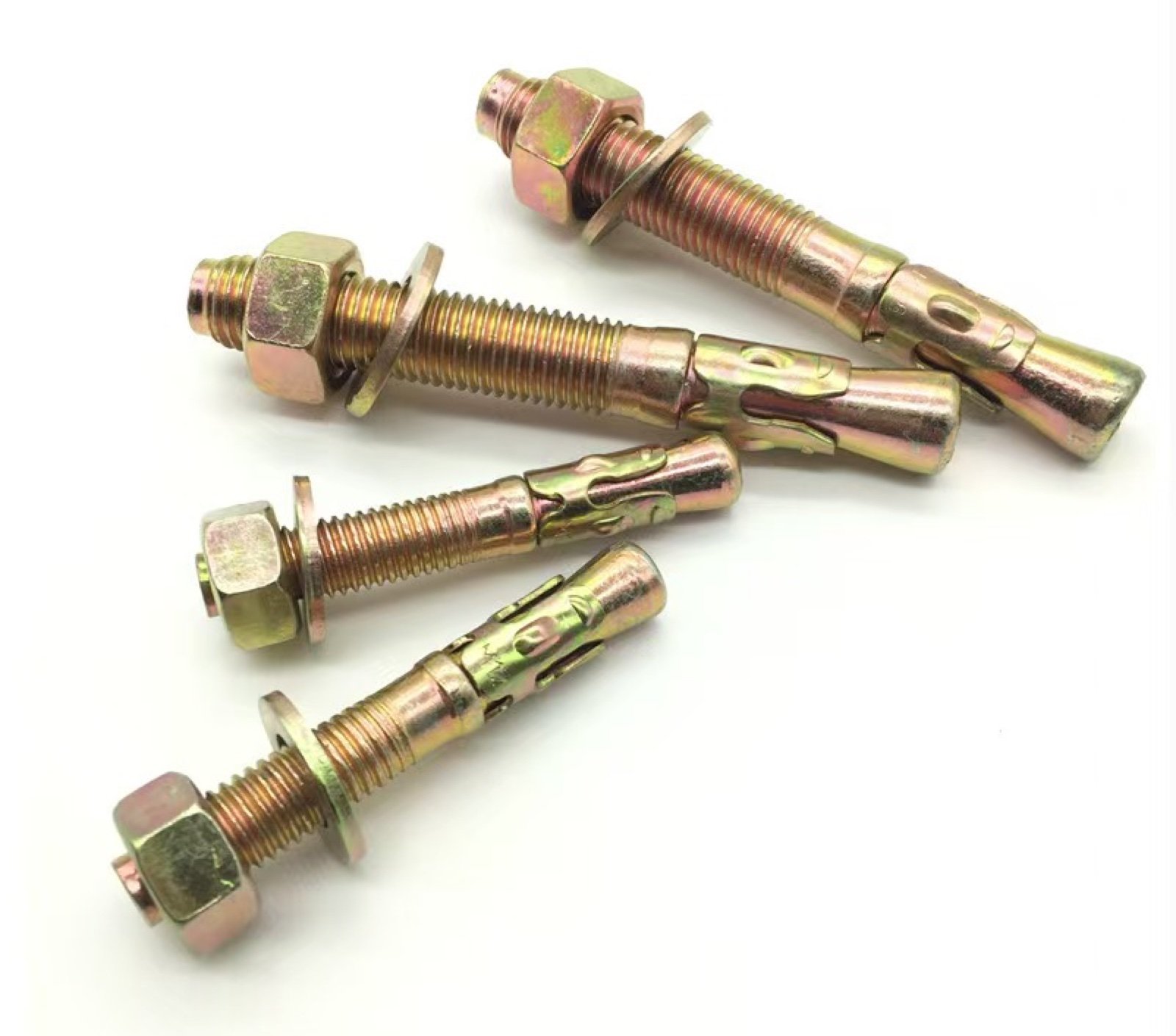

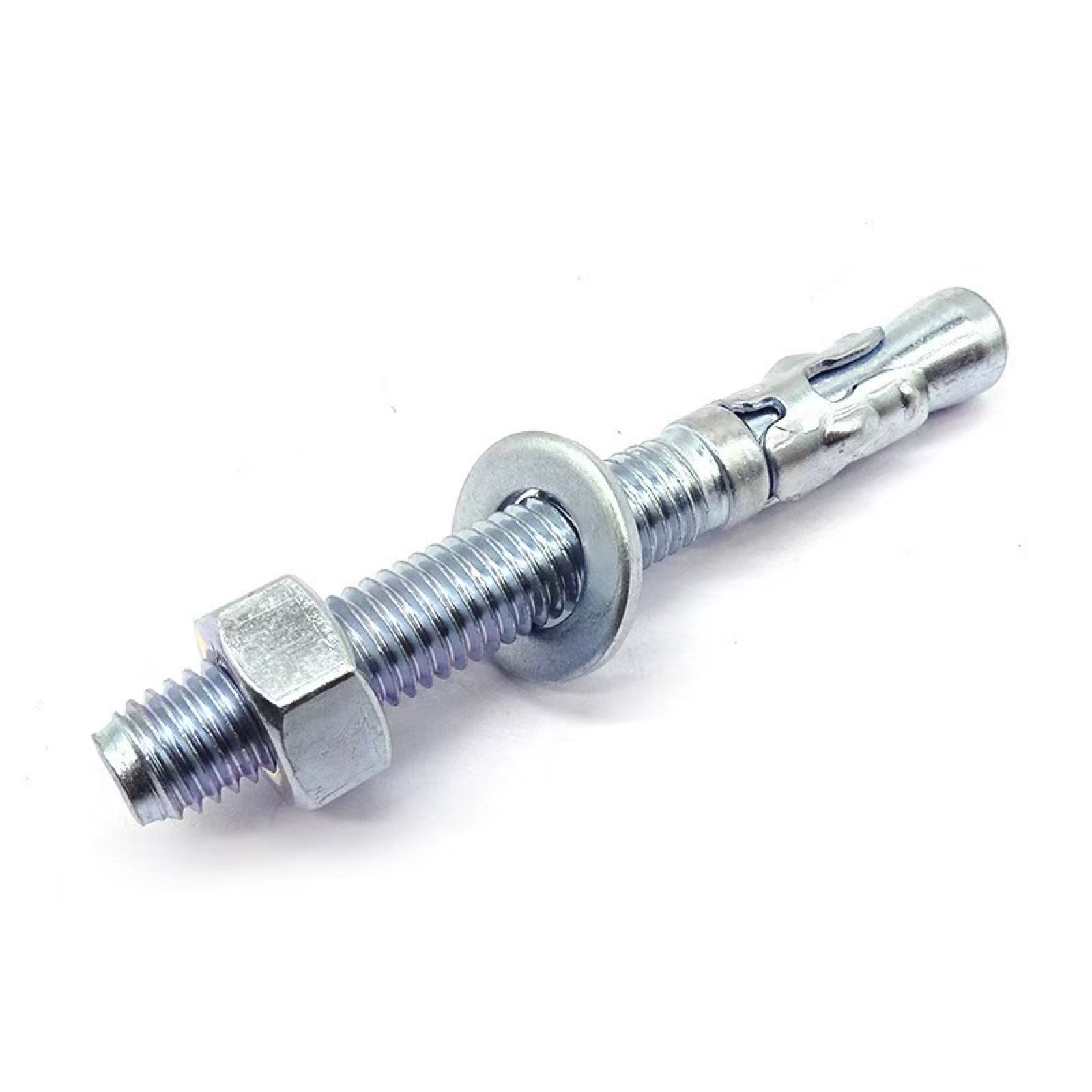

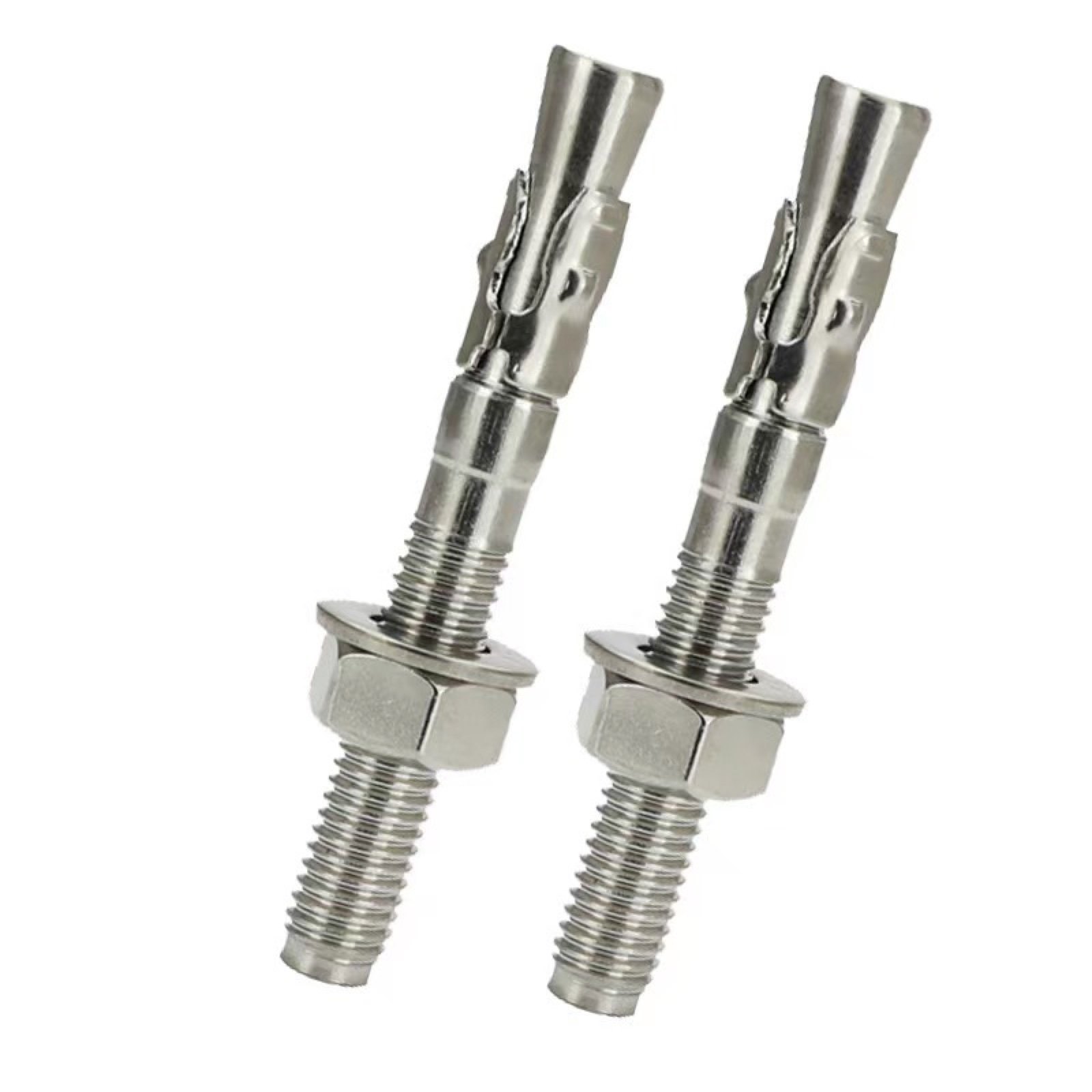

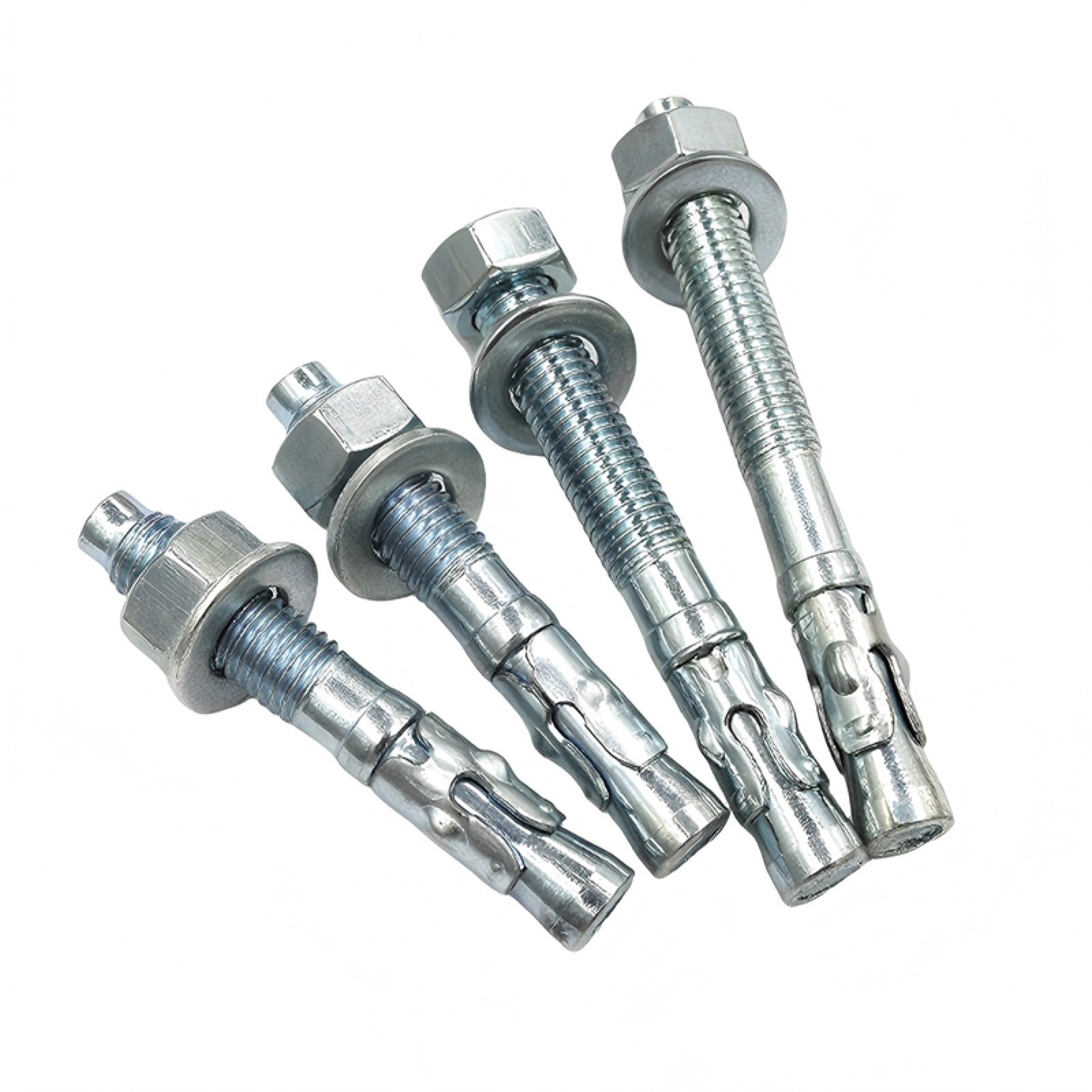

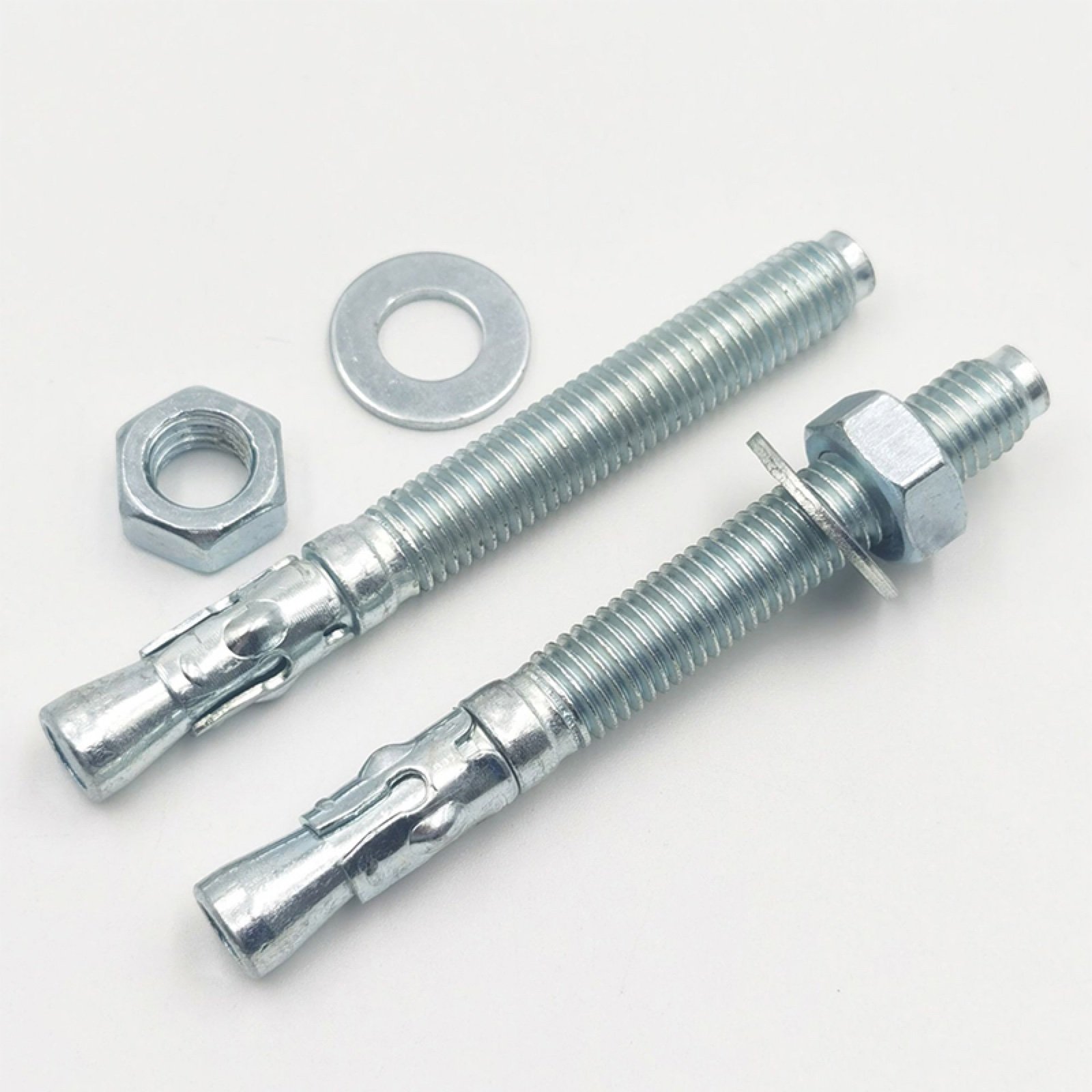

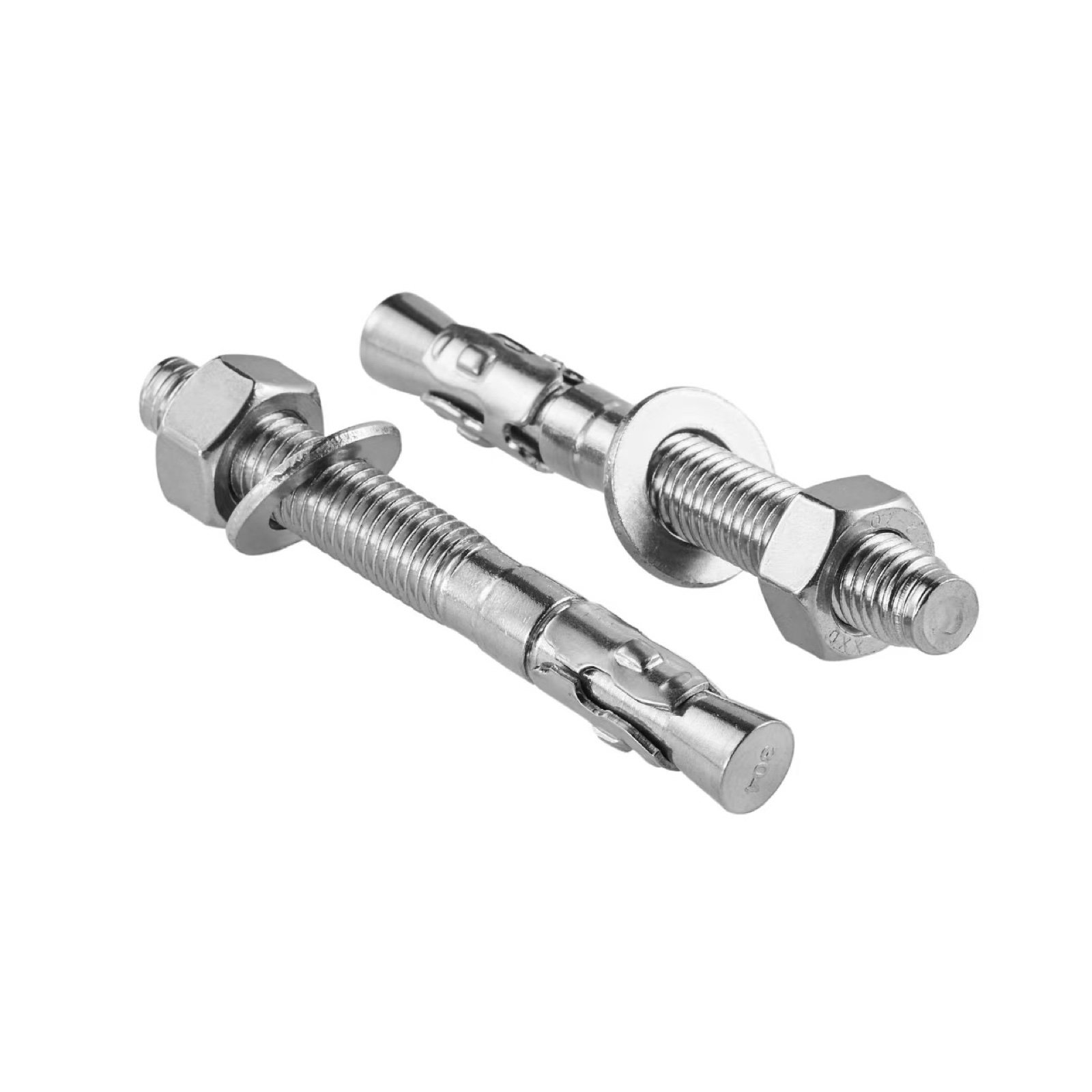

Wedge anchors, also called through bolts or mechanical expansion anchors, are used for fastening base plates, brackets and equipment to suitable concrete. The selected anchor model, installation method, concrete condition and engineer-approved design determine its allowable loads and suitability.
Features
- Mechanical expansion provides high pull-out resistance
- Suitable for permanent, non-removable installations
- For structural applications, check the specific anchor model's approval documents, load data and conditions of use before specifying it
Specifications
| Head Type | Hex Nut / Hex Flange |
|---|---|
| Thread Type | Metric Thread (M8 – M24) |
| Drive Type | Torque Wrench / Socket Set |
| Sizes | M8 – M24 | Length: 65mm – 350mm |
Material Options
- Carbon Steel (Zinc Plated)
- Stainless Steel — Grade 304 / 316
- HDG
Applications
- Structural steel column base plates
- Heavy machinery and equipment anchoring
- Concrete floor and wall bracket fixing
Wedge Anchor Procurement Checklist
For baut angkur or through-bolt enquiries in Indonesia, share the approved drawing, anchor diameter and overall length, material or coating requirement, base material, fixture thickness and quantity. Ask the installation engineer to verify drill-hole size, embedment, spacing, edge distance and tightening torque using the actual manufacturer's instructions. Product-specific ETA or other test documentation, where required, must be confirmed for the quoted model.
Browse Anchors & Fixings for related mechanical and chemical anchoring items, or send an enquiry for a specification-led quotation. Availability, coatings and performance claims are subject to product confirmation.
