Foundation Bolt (Anchor)
Foundation bolt and anchor rod enquiries for construction projects in Indonesia. Provide the approved drawing, diameter, embedded and threaded lengths, material grade, finish, quantity and delivery location. Specifications and documentation are confirmed before quotation.
Foundation Bolt (Anchor) Supplier
PT Nusantara Build and Furnish handles wholesale enquiries for Foundation Bolt (Anchor) in Indonesia. Provide the approved standard or drawing, dimensions, material or grade, finish, quantity and delivery location. Availability, special configurations and any required test documentation are confirmed for the specific product when preparing a quotation.
Specifications
| Product | Foundation Bolt (Anchor) |
|---|---|
| Standard | IS 5624, AS per drawing |
| Grades | 4.6, 8.8 |
| Material / Finish | MS, HDG |
| Size Range | As per approved customer drawing; available sizes subject to quotation |
| Thread Type | MM, BSW, BSF, UNC, UNF, Fine Pitch |
| Certification | Material reports and test certificates are subject to confirmation for the supplied item |
Material Options Available
MSHDG
Grades Available
4.68.8
Applications
- Machinery grouting
- base plates
Foundation Bolt Types and Drawing Requirements
Foundation anchors (often described as baut angkur or baut tanam) are used to connect columns, machinery base plates and other fixtures to concrete foundations. Cast-in anchor rods and post-installed mechanical anchors are different systems and should not be substituted without the project engineer's approval.

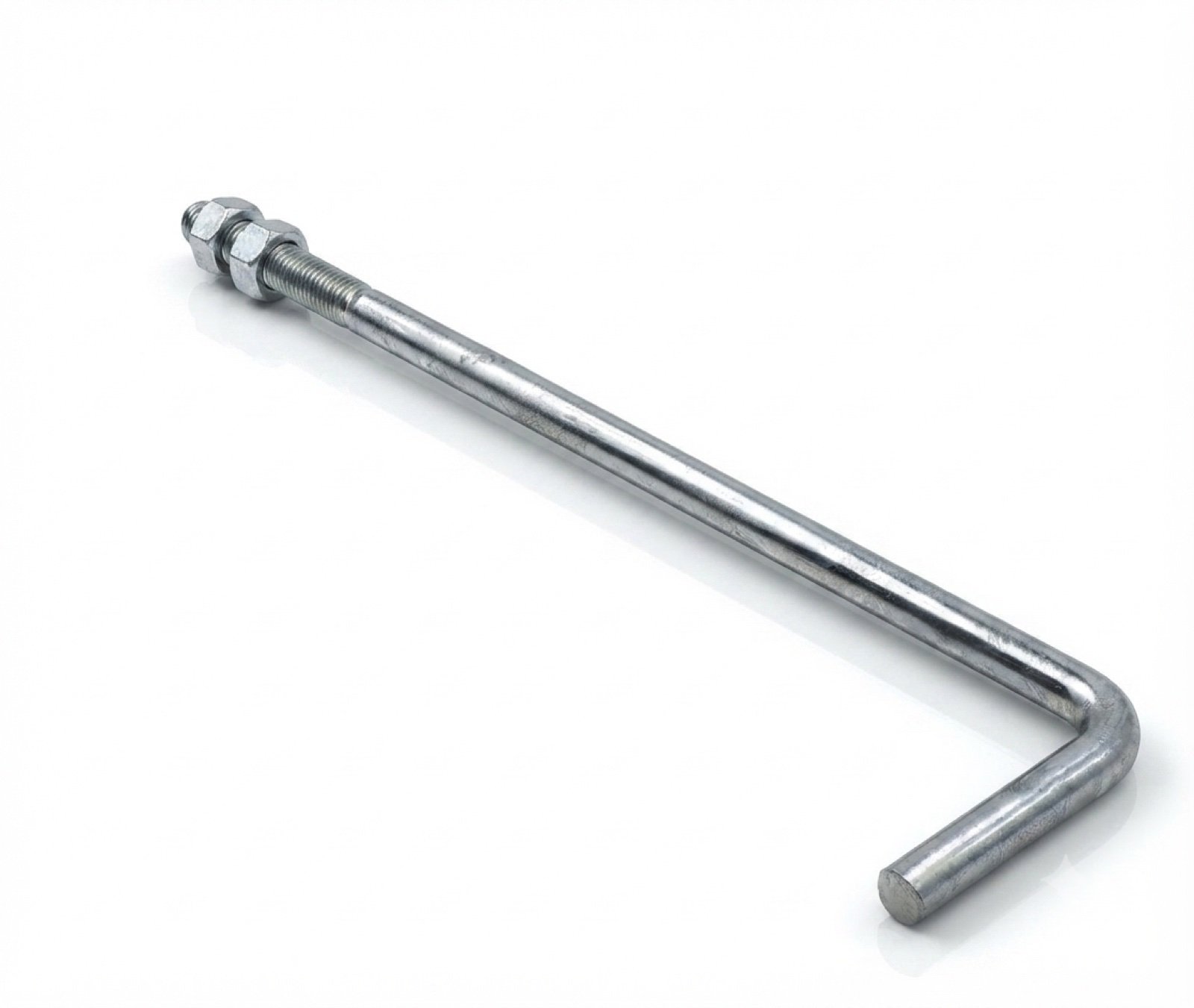

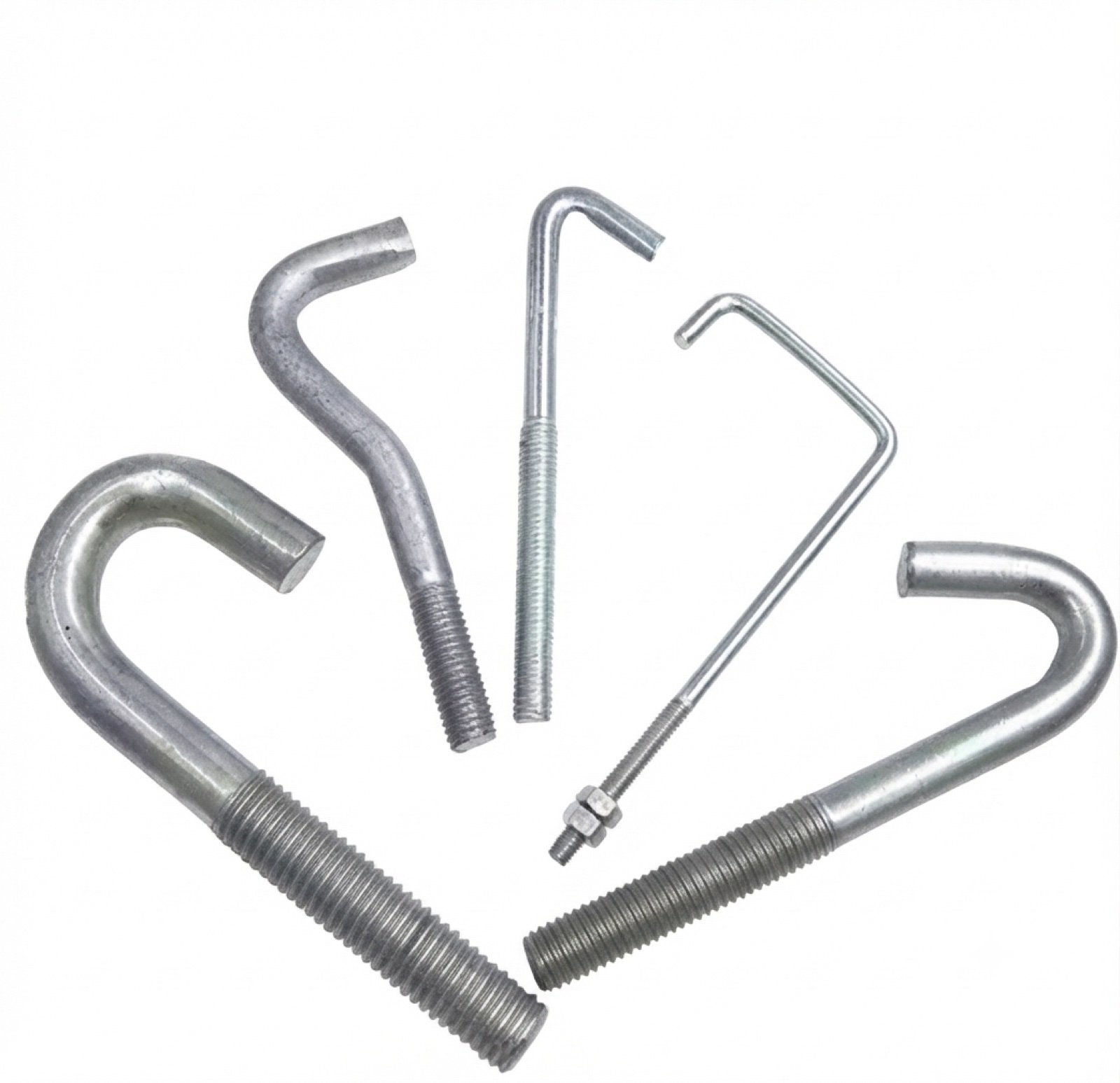

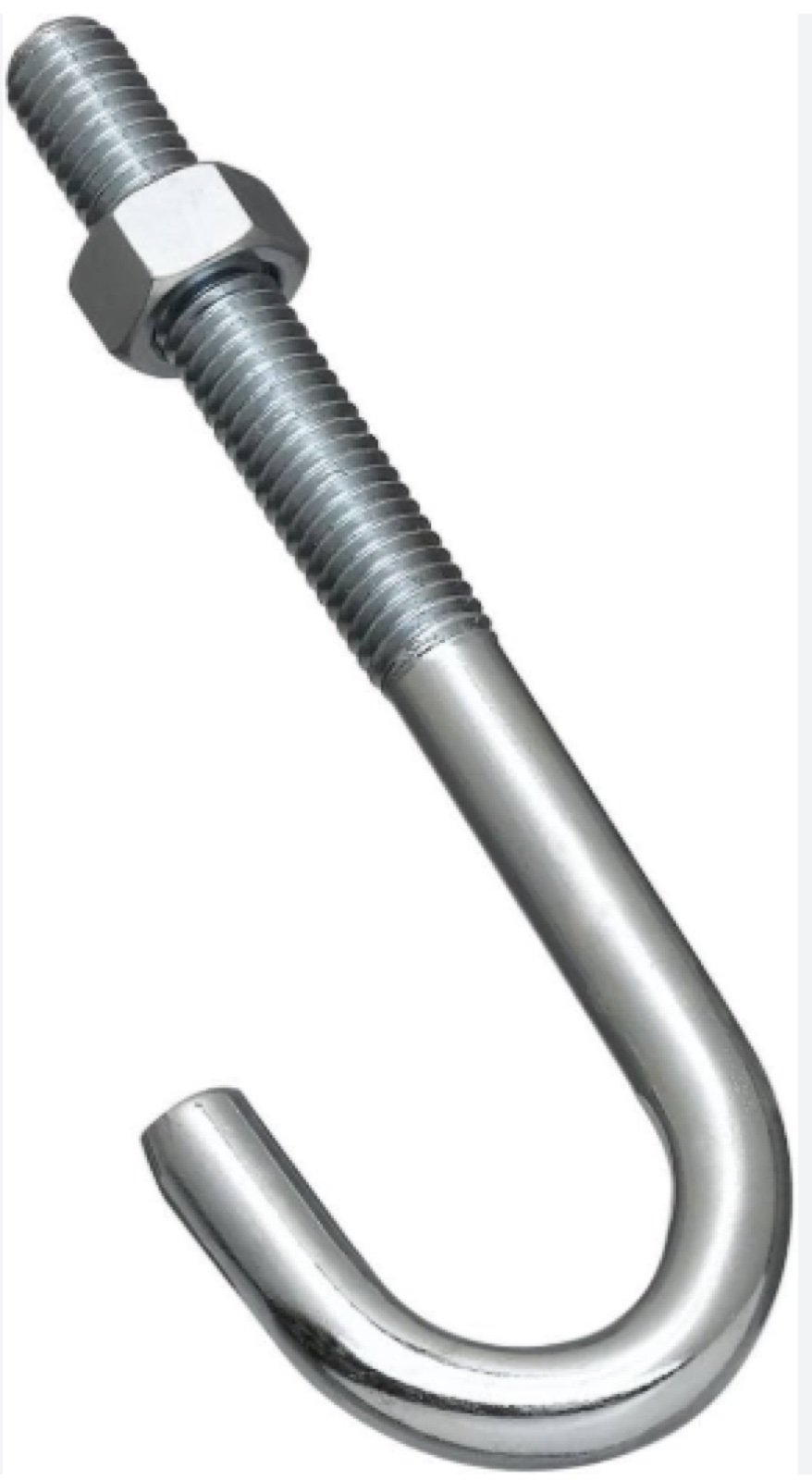

- Configuration: state whether the project drawing calls for a straight, headed, L-type or J-type foundation rod.
- Dimensions: provide diameter, overall length, threaded length, required projection above the concrete and embedded length.
- Material and finish: confirm the specified grade and any coating, such as hot-dip galvanizing, against the actual supply quotation.
- Accessories and documentation: specify nut and washer quantities, templates if required, and any project-specific test reports.
Related Anchors & Fixings can be reviewed for other fixing types. Final selections, concrete anchorage design and installation must follow approved project documentation.
Request a Wholesale Quotation
For Foundation Bolt (Anchor), share the applicable standard or drawing, product dimensions, material or grade, finish, quantity and project location. Supplier availability and documentation need verification before ordering. Contact PT Nusantara Build and Furnish with your requirements.
